Broken Boom Slide Repair

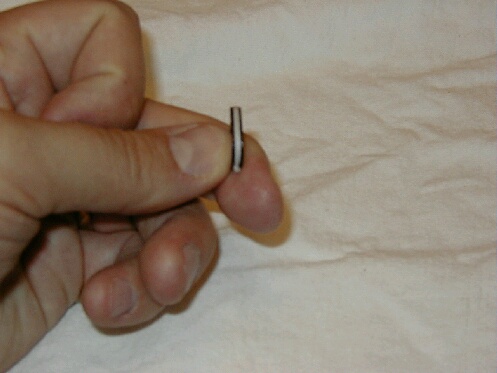

The Boom slides that come with the kit have a tendency to break.
You have the option to replace them with "String rings" or repairing the ring.
What I have done here is to show you one solution to the repair.

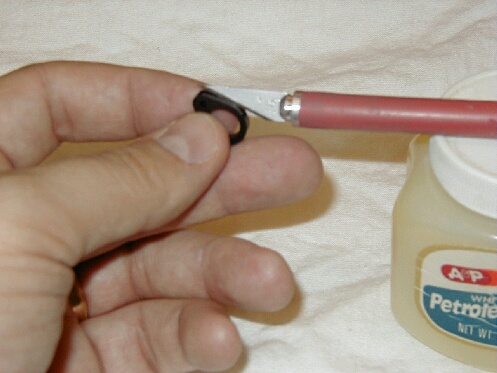

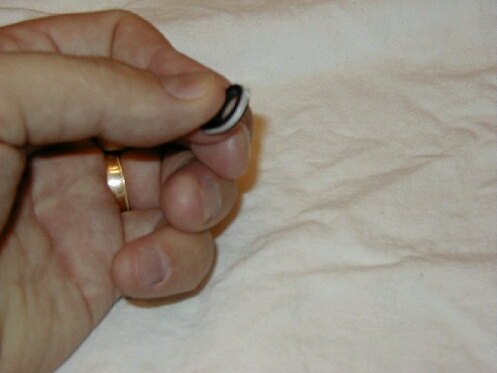

Cut a grove around the outside of the slide using an Exacto knife Take a 8" length of the Spectra line and wrap it 2 or 3 times around the slide inside the grove you cut. Tighten the line and tie a square knot. Apply CA to the line and knot. Cut off the ends of the line.



I have used this to repair a number of broken slides and have also used this technique to strengthen and reinforce the forward Jib Deck Eye.
